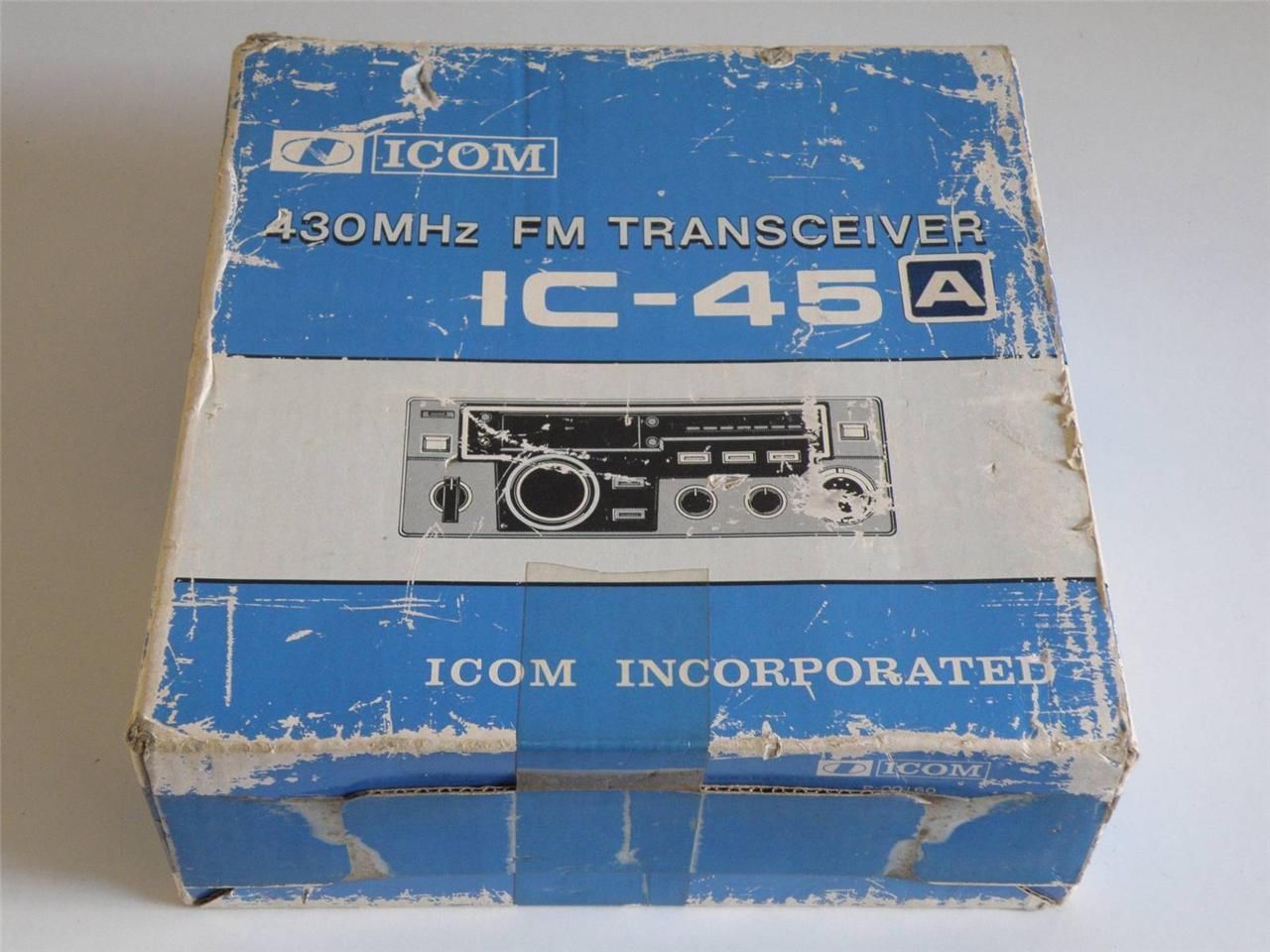

Icom IC-45A
| Type:
|
Amateur UHF Transceiver |
| Frequency Range: |
440-450 MHz (5/25 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 10 W
Lo: 1 W |
| Sensitivity: |
<0.3 uV (12 dB SINAD) |
| Selectivity: |
15 KHz (-6 dB), 30 KHz (-60 dB) |
| Image rejection: |
>60 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 500-700 mA
TX: 1.7-3.5 A |
| Aerial Input: |
50 ohms, N |
| Dimensions (W*H*D): |
140*50*177 mm |
| Weight: |
1.5 Kg |
| Manufactured: |
Japan, 1983-19xx |
| Other: |
5 memories |
| Related Documents: |
User Manual (3.7 MB) |
 |
